BDW-206PF

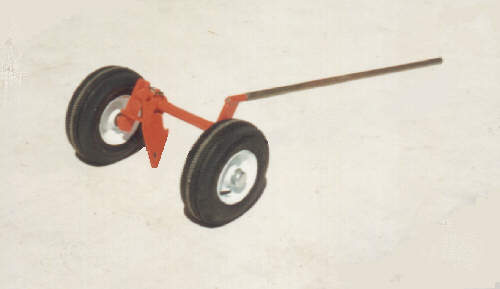

This set of dual wheels is designed for the Jet Ranger on pan floats, there is no modification necessary as they fit on the original fittings of your helicopter. See the BDW-206JR for the advantages of a dual wheel system.  Part Number BDW-206PF is for a complete ship set and 1 ea. handle bar.

Specifications:
  • App. Models: Bell Jet Ranger with Pan Floats
  • Attach points, 3 pins .50 dia.
  • Operation-Mechanical, 48" bar
  • Tire size 4.10 x 3.50-6 @ 85 psi.
  • Approximate skid lift 3"
  • Weight each side 36 lbs.
  • Dimensions 14 x 14 x 22
  • Color orange powder coated
  • Remove prior to flight
Shipping Information:
  • 2 boxes 14 x 19 x 27 (4.16 cu. ft. ea.)
  • 1 tube 1 5/8 dia. x 52 3/8 (.12 cu. ft. ea.)
  • Total weight 80 lbs. (8.28 cu. ft.)
