BDW-245B-1801

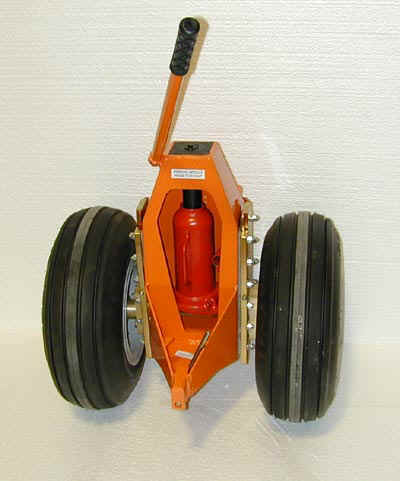

    The BDW-245B-1801 is the current wheel set supplied to Bell Helicopter as original equipment.  The "B" model replaces the "A" model and has an increased gross weight capacity, additional lift height and includes a spring loaded front snap pin. A set requires 2 ea. BDW-245B-1801.








Specifications:

  • APP. MODELS: AH-1 series,  204-205, 212, 222, 230, 412, and UH-1 series

  • Skid tube dia. 4.00"

  • Attach points, 2 ea. eye bolts fit both 16.41" & 17.875" centers

  • Operation-Hydraulic 8 ton jack

  • Tire size 18 x 5.5 @ 105 psi.

  • Approximate skid lift 4"

  • Weight each side 95 lbs.

  • Dimensions 19 x 20 x 21

  • Color orange powder coated or color of request

  • Remove prior to flight

Shipping Information:

  • 2 boxes 18 x 22 x 24 (5.5 cu. ft. ea.)

  • Total weight 191 lbs. (11 cu. ft.)



CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)

IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
