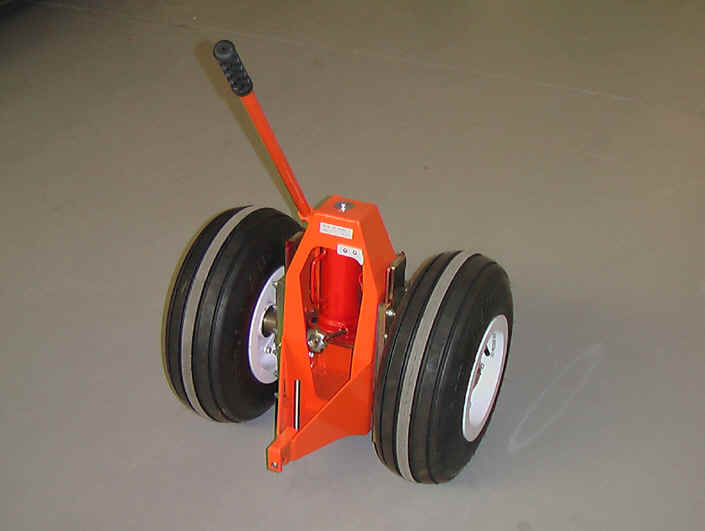

BDW-245B-1802

    The BDW-245B-1802 is the military version of  model BDW-245B-1801.  The "B" model was originally designed for the AH-1 and UH-1 series to give additional lift plus an increase in gross weight. An additional feature is the front snap in pin. A set requires 2 ea. BDW-245B-1802's.






Specifications:

  • APP. MODELS: AH-1 series,  204-205, 212, 222, 230, 412, and UH-1 series

  • Skid tube dia. 4.00"

  • Attach points, 2 ea. eye bolts fit both 16.41" & 17.875" centers

  • Operation-Hydraulic 8 ton jack

  • Tire size 18 x 5.5 @ 105 psi.

  • Approximate skid lift 4"

  • Weight each side 95 lbs.

  • Dimensions 19 x 20 x 21

  • Color orange powder coated or color of request

  • Remove prior to flight

Shipping Information:

  • 2 boxes 18 x 22 x 24 (5.5 cu. ft. ea.)

  • Total weight 191 lbs. (11 cu. ft.)


NSN #'s:

4920-015-492-387

1730-015-492-387
