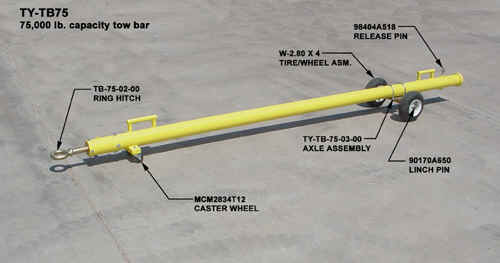

TY-TB75 & TY-TB75-15


Spec.

MATERIAL: ALUM. 3" I.D. TUBE

TOW EYE: 2 1/2" I.D. STANDARD 3" I.D. OPTIONAL

COLOR: YELLOW POWDER COAT

TY-TB75 (10 ft.) = 55 lbs.

TY-TB75-15 (15 ft.) = 65 lbs.

TY-TB75-5X EXTENSION



This tow bar has the capacity to handle aircraft up to a gross weight of 75,000 lbs. They are available in 10 ft. and 15 ft. lengths.  The TY-TB75 is 3" I.D. aluminum tubing which makes it compatible with many multi-link tow bar systems. For our two piece tow bar see our TY-TB75-14.



CLICK HERE BDW1_1.jpg (11151 bytes) FOR PARTS

BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMAT FOR THE TY-TB75

CLICK HERE BDW1_1.jpg (11151 bytes) FOR PARTS

BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMAT FOR THE TY-TB75-15





IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
