BCW-25

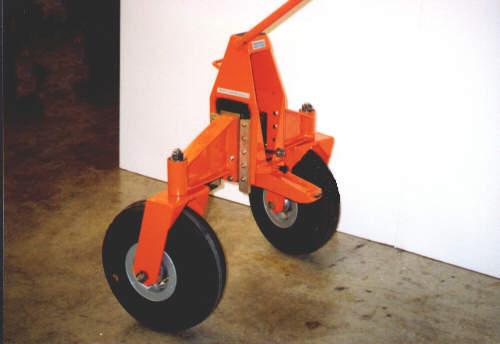

    The BCW-25 are caster wheels for helicopters with fitting on the forward ends of the skid tubes.

Specifications:
  • Bell 214ST and other military aircraft
  • Skid tube dia. 4.00"
  • Attach points, 2 ea. eye bolts on 18.00" centers
  • Operation-Hydraulic
  • Tire size 5.00 x 5-10 ply
  • Approximate skid lift 3"
  • Weight each side 95 lbs.
  • Dimensions 19 x 20 x 21
  • Color orange powder coating
  • Remove prior to flight
