MULTI-CARRIER HYDRAULIC GROUND HANDLING WHEELS



This hydraulic frame P.N. BDW-HUF-00 is designed with changeable carriers to fit different model helicopters. The idea is to reduce the cost for operators or maintainance facilities that are required to service a mixed fleet of aircraft. The HUF design uses simple, dependable hydraulic jacks to move the wheels straight up and down while lifting or lowering the aircraft. For example, when ordering a set of ground handling wheels, such as P.N. BDW-MDH for the Explorer. The set will consist of 2 ea. P.N. HUF-00 and 1 set, P.N. W-CBR-00 carriers. If you have the need to move another helicopter, such as a Eurocopter AS-355 Twin Star, you can purchase another set of carriers and save the cost of buying an entirely new unit.

BASIC SPECIFICATIONS

  • HYDRAULIC OPERATION

  • 6000 lb. BOTTLE JACK

  • TIRES 5.30/4.50-6  6 PLY

  • WT. PER SIDE APPROX. 55 lbs.

  • COLOR ORANGE POWDER COATED

  • REMOVE PRIOR TO FLIGHT

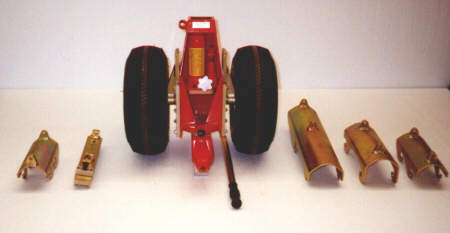

Shown here with optional carriers


HELICOPTER MANUFACTURER MODEL SHIP SET P.N. BOTH SIDES AND CARRIER
AGUSTA A-119 BDW-A119H
BELL 206L, 407 BDW-206LRH
EUROCOPTER AS-350 BDW-ATH
EUROCOPTER BK-117, BO-105 BDW-BKH
EUROCOPTER EC-130 BDW-E130H
EUROCOPTER SA-315 BDW-ALH
MD 500, 520, 530 BDW-500H
MD 600, 900 BDW-MDH
