MILITARY HELICOPTER TOW BAR

MODEL HT-60A

FOR UH, HH-60 AND AH-64 SERIES WITH SINGLE TAILWHEEL

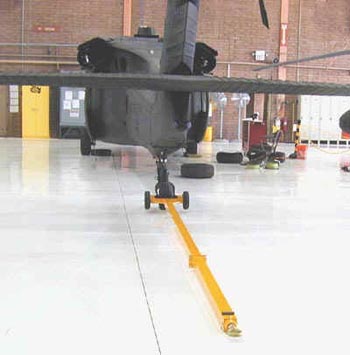

    The Model HT-60A is a light weight aluminum tow bar designed for everyday ramp use and can be quickly broken down into two pieces for easy transporting. Pneumatic wheels take the hassle out of moving to and from the aircraft.

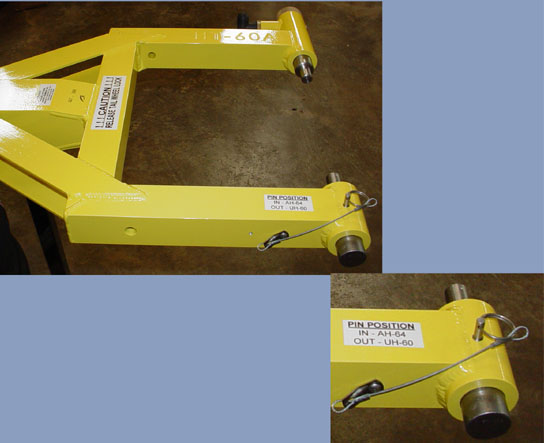

    This tow bar can be used for towing both the UH-60 and the AH-64 by locking the movable pin in the proper position.

    The assembled overall length is approximately 13 ft. This allows turning clearance for the horizontal stabilizer when using a Hummer as a tow vehicle.

SPECIFICATIONS:

MATERIAL: 2 PIECE ALUMINUM

ASSEMBLED LENGTH: 13 ft.

SHIPPING WEIGHT: 69 lbs.

FINISH: MIL YELLOW POWDER COAT

NSN IN PROCESS

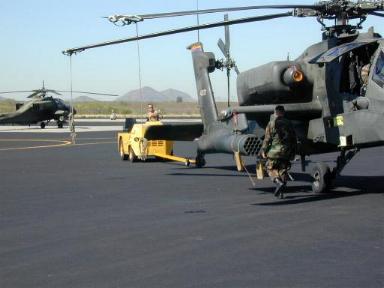

HT-60 (W).JPG (16923 bytes)

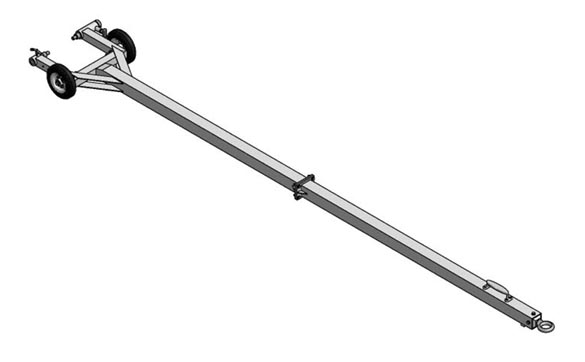

HT-60A asm.jpg (14867 bytes)



CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)

IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
