MILITARY HELICOPTER TOW BAR

MODEL HT-60SH

FOR SH-60B,F SEAHAWK AND HH-60H,J JAYHAWK SERIES WITH DUAL TAILWHEELS

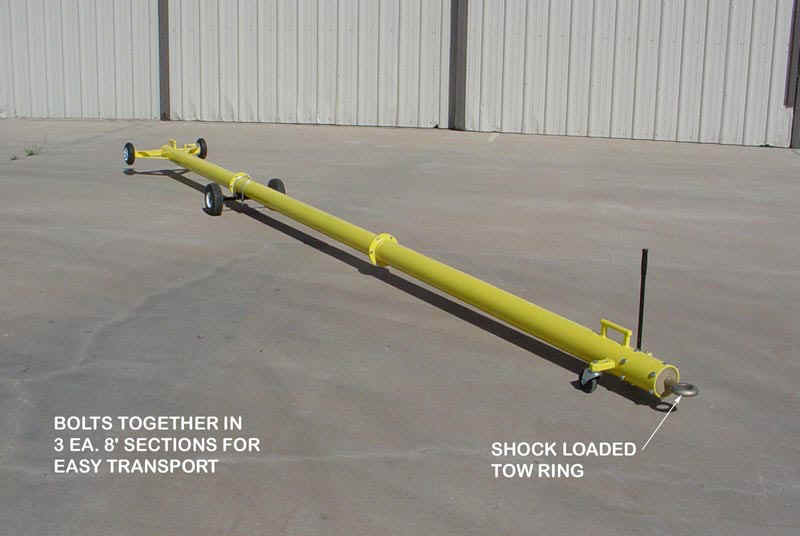

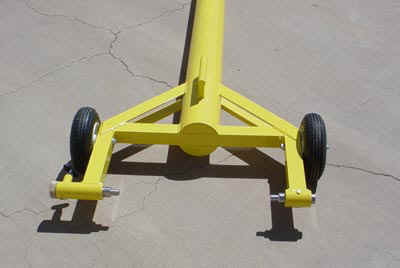

    The Model HT-60SH is an aluminum tow bar designed for everyday ramp use and can be broken down into three pieces for easy transporting. Pneumatic wheels take the hassle out of moving to and from the aircraft.

    The assembled overall length is approximately 24 ft. This allows turning clearance for the horizontal stabilizer when using a Hummer as a tow vehicle.

SPECIFICATIONS: MATERIAL: 3 PIECE 5" DIAMETER ALUMINUM TUBING ASSEMBLED LENGTH: 24 ft. WEIGHT: 189 lbs. SHIPPING WEIGHT: 235 lbs. FINISH: MIL YELLOW POWDER COAT OR REQUESTED COLOR NSN IN PROCESS

CLICK HERE FOR PARTS BREAKDOWN  IN FORMAT

IF YOU CAN'T READ PDF FILES THEN CLICK HERE
