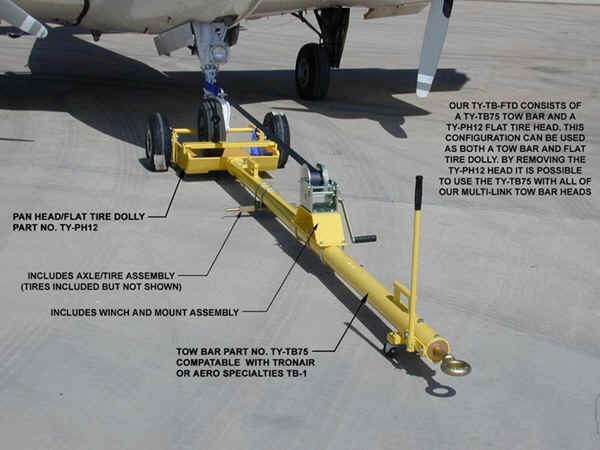

TY-TB-FTD



This towbar model TY-TB-FTD can be used to tow most aircraft with a nose wheel gross weight of up to 6,000 lbs. This maximum is also the same if used as a flat tire dolly.  This towbar can also be used in cases where it is necessary to lower the tail of the aircraft to get into some T-Hangars. The design of TY-TB-FTD is easy on the nose gear. The strap and tires absorb the startup/abrupt stop shock of towing. If you turn past the limits (don’t), the nose wheel will slide on the pan.

EASY TO USE!

With the tow bar mounted on the front of the tug, drive the towbar up to the front of the tire. Stop a few inches short. Place the rubber protected hook or strap around the strut and winch it up on the pan to the stop.

WORKS AS A TOW BAR!!!






SPECIFICATIONS:

LENGTH: 12 ft.

PAN: 20" X 26" L

RAMP SLOPE: 10°

WEIGHT: 300 lbs.

PAN CAPACITY: 6,000 lbs.

WINCH CAPACITY: 2,500 lbs.

TIRE: 5.00 X 5   10 PLY

YELLOW POWDER COAT

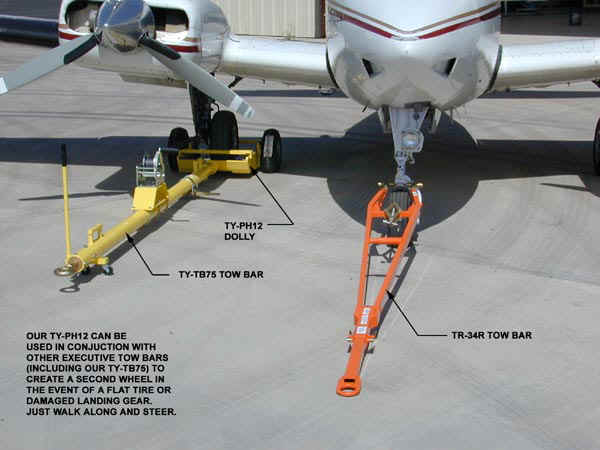

Works as a flat tire dolly!!!
