HT-47S

TOW SYSTEM FOR CH-47 HELICOPTER

specifications:

  • CENTERLINE BETWEEN WHEELS 134"
  • LENGTH 14.8 FT.
  • WT. 151 LBS.
  • BREAKDOWN LENGTH 80"
  • LOAD RATING 75,000 LBS. MAX
  • FINISH: POWDER COAT YELLOW



      NSN 1730-01-562-4023

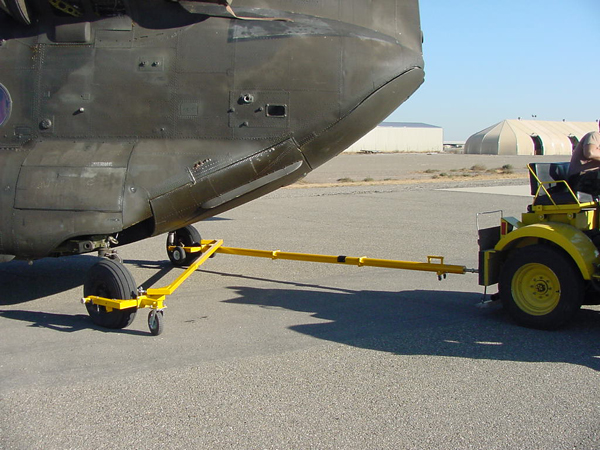

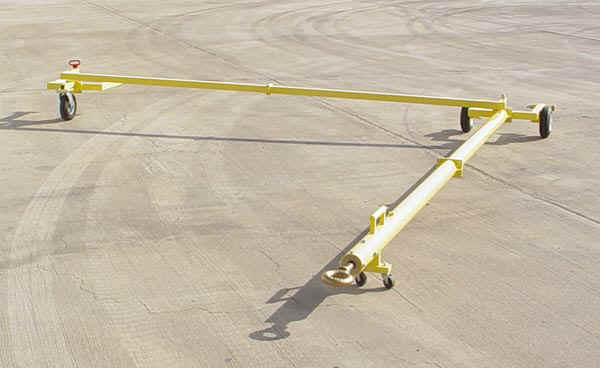

Towbar attaches to right rear wheel with convenient to use spring loaded slide pin and auxiliary tow head attaches to left rear wheel and a tie rod is pinned between the two tow heads this allows both tow heads to turn equally in the same direction at the same time. No more manual turning of the left wheel is required. Unit stows easily for transporting to and from the helicopter. The HT-47S breaks down into easy to handle parts to carry aboard helicopter or vehicle.


CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMATBDW1_1.jpg (11151 bytes)

IF YOU CAN'T READ PDF FILES THEN CLICK HERE Get Acrobat Reader
