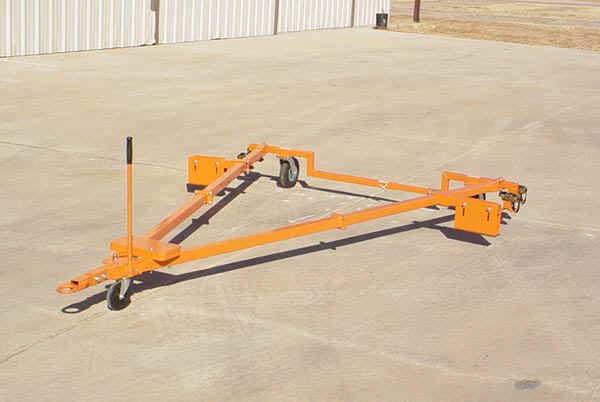

HELICOPTER TOW BAR

MODEL HT-500 and HT-500P

FOR HELICOPTERS WITH 2" TO 3 1/4" SKID TUBES

HT-500 & HT-500P SPECIFICATIONS:

LENGTH: 138"

SPREAD: 64" TO 88"

WEIGHT: 125 lbs. (500P = 177 lbs.)

HITCH: RING OR BALL

FINISH: ORANGE POWDER COAT

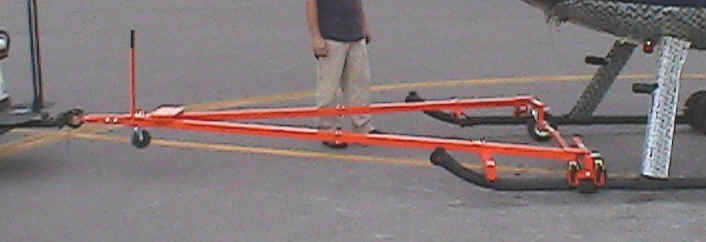

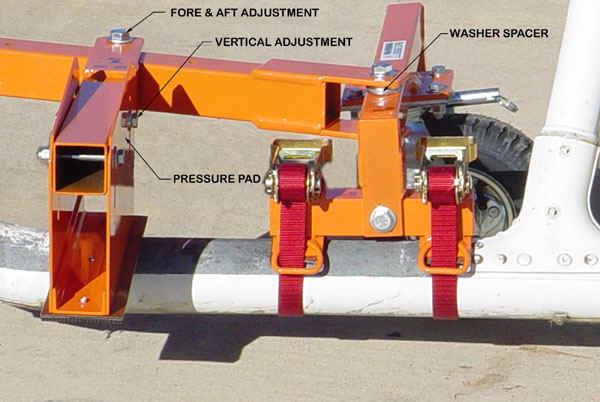

The HT-500 is direct replacement for our HM-4M tow bar used on helicopters up 3200 lbs. The HT-500P is the same tow bar with the addition of pressure pads and weight mainly for use on the tail heavy helicopters like the MD500. This eliminates the need for personnel standing on the skids to keep the nose down.


The HT-500 is the same as the HT-500P without the pressure pads

CLICK HERE FOR PARTS BREAKDOWN IN FORMAT

IF YOU CAN'T READ PDF FILES THEN CLICK HERE
