MODEL HT-7M

FOR BELL UH-1, AH-1, 205, 212 AND 412 TYPES

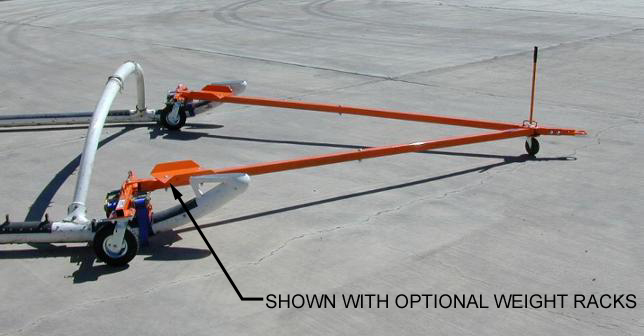

     Brackett towing systems are designed for one man operation. Some of the advantages of these towbars are that they are easy to use and do not interfere with equipment hung under the helicopter. They are very reasonably priced. The towbars can be installed in 3-5 minutes by one man. The caster wheel assembly can be used separately from the towbar if desired. To install the towbar, place the caster wheels over the skid tubes, then raise the helicopter up on its' ground handling wheel. This allows enough room to slip the nylon straps under the skid and into the ratchets. Then ratchet the skid up into the rubber protected cups. The towbar can be attached to most any type towing vehicle.

Specifications:

  • Skid tube dia. 3 1/4" to 4 1/2"
  • Length 140"

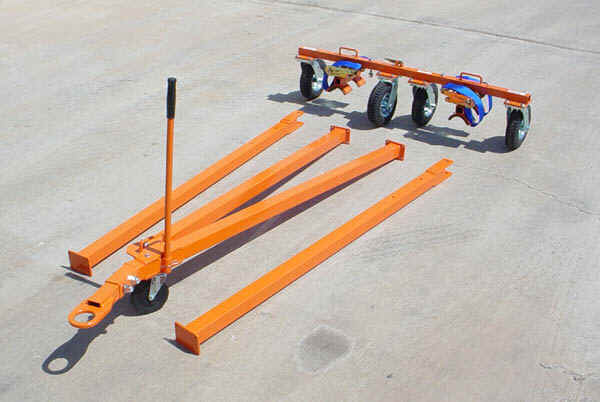

  • Legs can be split into 4 pcs. of 5 1/2 ft. for easier transport
  • Skid spread 25" to 120"
  • Weight 155 lbs.
  • Wheel: Caster & locking
  • Hitch ring 2" inner dia.
  • Color orange powder coating
