MULTI-CARRIER MECHANICAL GROUND HANDLING WHEELS

WITH UNIVERSAL FRAME

This universal frame allows an operator to purchase one set of wheels, and should the need arise to move more than one type of helicopter he needs only to purchase a set of carriers for each helicopter. To change from one carrier to another requires only minutes to remove and replace a pin. These dual wheels are designed to be easily installed and to move the helicopter without difficulty. The wheels come with large 5.30 x 6 tires.

BASIC SPECIFICATIONS:

  • OPERATION MECHANICAL

  • THROW OVER BAR 48" LENGTH

  • TIRE SIZE 5.30/4.50-6 6 PLY

  • COLOR ORANGE POWDER COATED

  • REMOVE PRIOR TO FLIGHT

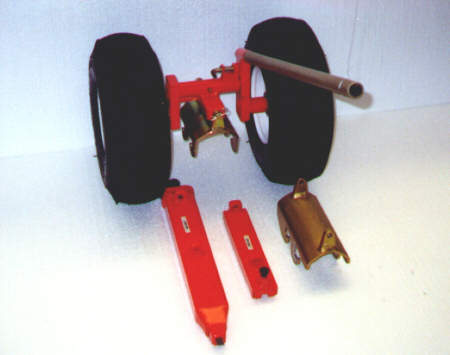

SHOWN WITH OPTIONAL CARRIERS


Shipping info:

1 box 30 X 15 X 19 (4.9 cu. ft.)

1 box 2 X 2 X 50 (.12 cu. ft.)

Total weight: 69 lbs.

HELICOPTER MODEL SET P.N. BOTH SIDES WITH CARRIER WT. EA. IN LBS.
BELL 206L BDW-206LR 33

31

32

47 BDW-4712
OH-58 BDW-500M
MD HELICOPTERS 500 BDW-500M 32

32

32

600 BDW-600M
OH-6 BDW-500M
EUROCOPTER AS-350 BDW-AT 31
HILLER H-12 BDW-4712 31

CLICK HERE FOR PARTS BREAKDOWN  IN acopdflogo.gif (1196 bytes) FORMAT

BDW-206LR

BDW-4712

BDW-500M

BDW-600M

BDW-AT
